Checking rocker clearance

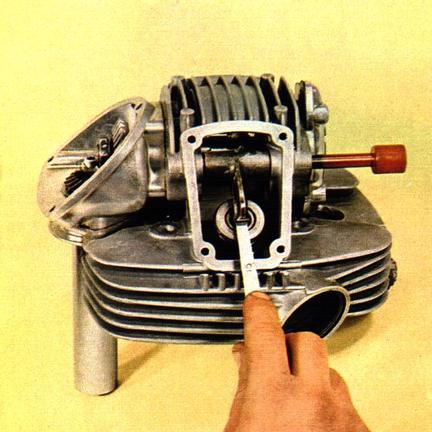

Before fitting the regular pin, check the play under the rockers with a feeler gauge. The clearance for the inlet valve should be 0.10 mm and 0.15 mm for the exhaust valve. If the clearance is not correct, install the correct size shim to achieve the correct clearance. After this has been done, fit the normal rocker pin.


Figure 77
