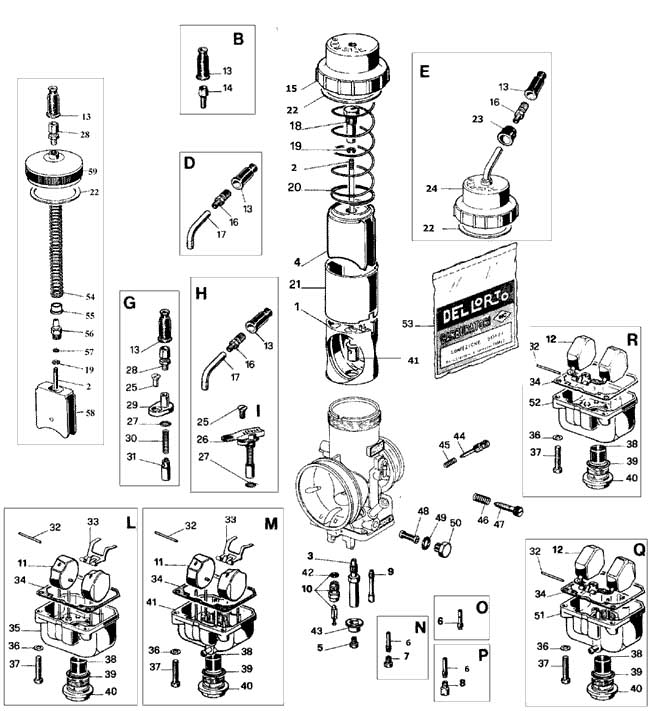

VHSA-B PARTS LIST & DIAGRAM
|
|
| Diag |
Part |
|
|
25 |
11752 |
Choke
retaining screw |
|
|
|
| No. |
No. |
Description |
Sizes/options available |
26 |
8294 |
Lever
choke assy |
|
|
|
| 1 |
12797 |
Venturi VHSB |
34, 38 & 39 |
27 |
8297 |
Choke
O ring |
|
|
|
| 2 |
8530 |
Needle VHSB |
K1 to K95 |
28 |
1104/1691 |
Choke
cable adjuster & locknut |
|
|
| 2 |
9713 |
Needle VHSA |
U1 to U25 |
29 |
12006 |
Choke
support |
|
|
|
| 3 |
14206 |
Needle jet/atomiser FN (34QD only) |
258,
260, 262, 264, 266, 268, |
30 |
3133 |
Choke
spring |
|
|
|
| 3 |
12539 |
Needle jet/atomiser DP VHSB |
264,266,268
& 270 |
31 |
3238 |
Choke
piston |
|
|
|
| 3 |
12542 |
Needle jet/atomiser DQ VHSB |
258 to 274 in steps of 1 |
32 |
10556 |
Float pin |
|
|
|
|
| 3 |
13368 |
Needle jet/atomiser ET VHSA |
262 |
33 |
10544 |
Float arm |
|
|
|
|
| 4 |
12880 |
Slide (Carb. With insert guide) VHSB |
30, 35, 40, 45, 50. |
34 |
* |
Float bowl gasket |
Part
of gasket set No. 53 |
|
| 4 |
12547 |
Slide (Carb. Without insert guide) VHSB |
30, 40, 45 & 50 |
35 |
13042 |
Float bowl |
for
individual floats |
|
|
| 4 |
14760 |
Slide, chrome (With insert guide) VHSB |
40, 45 & 50 |
36 |
4957 |
Spring
washer |
|
|
|
| 4 |
13370 |
Slide VHSA |
40, 50,
55, 60 & 65 |
37 |
6430 |
Float
bowl screw |
|
|
|
| 5 |
6413 |
Main Jet |
56 to 330, in steps of 1,2 & 3. Please
ask. |
38 |
11957 |
Main
jet fuel filter VHSB |
|
|
| 6 |
13086 |
Idle jet emulsion tube VHSB |
30,32,34,35,36,38,40,42,44,45,46,48,50,52,55
58,60,62,65,68,70,75 |
39 |
* |
Float bowl nut O ring |
Part
of gasket set No. 53 |
|
| 6 |
10532 |
Idle jet emulsion tube VHSA |
CD1 |
40 |
13645 |
Float
bowl nut |
|
|
|
| 7 |
1486 |
Idle jet (short) |
30 to 198, in steps of 1,2 & 3. Please
ask |
41 |
12541 |
Atomiser
guide |
|
|
|
| 8 |
12995 |
Idle jet (deep) VHSB, some
models |
40,42,44,45,46,48,50,52,55,58,60,62,65,68,70
75,120 |
41 |
14356 |
Needle/Atomiser bush |
Rotax
Max FN tube |
|
|
| 9 |
6217 |
Choke jet |
40, 50, 55, 60, 65, 70, 75, 100 |
42 |
6288 |
Needle
valve washer |
|
|
|
| 10 |
10375 |
Float needle valve |
150, 170, 200, 225 |
43 |
12546 |
Anti
surge washer, main jet |
|
|
| 10 |
8649 |
Float needle valve |
250, 270, 300, 350, 400 |
44 |
10022 |
Air screw |
|
|
|
|
| 11 |
9794 |
Float, single |
1 (3.5g), 3 (3.5g), 4 (4.5g), 5 (2.8g) |
45 |
7446 |
Mixture
screw spring |
|
|
|
| 12 |
12630 |
Float assy (double) |
0.1
|
46 |
11630 |
Stop
screw spring |
|
|
|
| 13 |
1476 |
Rubber cable cap |
Also in gasket set no. 53 |
47 |
12794 |
Throttle
stop screw |
|
|
|
| 14 |
1104 |
Cable adjuster |
|
48 |
12093 |
Filter |
|
|
|
|
| 15 |
12795 |
Carburetor top VHSB |
|
49 |
* |
Fibre washer |
Part
of gasket set No. 53 |
|
|
10006 |
Carburetor top VHSA |
|
50 |
12094 |
Filter
screw cap |
|
|
|
| 16 |
1481/1692 |
Cable adjuster & locknut |
|
51 |
13365 |
Float bowl |
|
|
|
|
| 17 |
3698 |
Cable elbow 90 degrees |
|
52 |
13041 |
Float bowl |
for
1 piece float assy |
|
|
| 17 |
11879 |
Cable elbow 70 degrees |
|
53 |
52611 |
Gasket set |
VHSA |
|
|
|
| 17 |
9330 |
Cable elbow 40 degrees |
|
53 |
52612 |
Gasket set |
VHSB |
|
|
|
| 18 |
10889 |
Cable holder |
|
54 |
14413 |
Slide spring |
0.22kg/28mm |
|
|
| 19 |
9596 |
Needle circlip |
|
54 |
14645 |
Slide spring |
0.25kg/28mm |
|
|
| 20 |
12019 |
Slide spring (0.6Kg/58mm) VHSB |
|
55 |
14416 |
Slide
spring washer |
|
|
|
| 20 |
11734 |
Slide spring (1Kg/58mm) VHSB |
|
56 |
14195 |
Cable
retainer |
|
|
|
| 20 |
10008 |
Slide spring VHSA |
|
57 |
10825 |
Needle
washer |
|
|
|
| 21 |
12789 |
Slide insert guide VHSB |
|
58 |
14200 |
"Aprilia" slide |
35,40,45
& 50 |
|
|
| 22 |
* |
Top cover gasket |
Part of gasket set No. 53 |
59 |
14197 |
Carburetor
top |
|
|
|
| 23 |
13336 |
Rubber cap |
|
|
Manual |
DellortoTuning
manual |
Covers
current range of Carburetor s |
| 24 |
13604 |
Carburetor top VHSB |
Including swivel 40 degree elbow |
|
|
|
|
|
|
|
|
