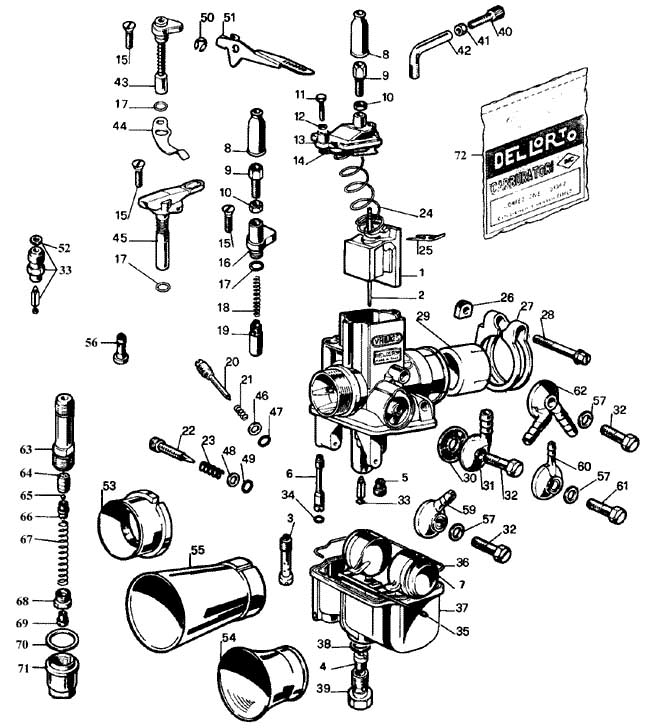

VHB PARTS LIST & DIAGRAM
|
|
| Diag |
Part |
|
|
|
Diag |
Part |
|
|
| No. |
No. |
Description |
Sizes/options available |
|
No. |
No. |
Description |
Sizes/options available |
| 1 |
7447 |
Slide 20 - 26mm |
30, 40, 50 & 60 |
|
30 |
6109 |
Fuel filter |
|
| 1 |
7454 |
Slide 27 - 30mm |
60 |
|
31 |
9250 |
Fuel banjo |
Plastic |
| 2 |
2343 |
Needle 20 - 26mm |
E1 to E42 |
|
32 |
4568 |
Banjo bolt |
|
| 2 |
7455 |
Needle 27 - 30mm |
V1 to V14 |
|
33 |
4559 |
Needle valve |
|
| 3 |
8203 |
Atomizer U 20 - 26mm |
260 |
|
33 |
9436 |
Needle
valve assembly VHBZ/T |
| 3 |
8299 |
Atomizer V 20 - 26mm |
260 |
|
34 |
6173 |
O ring |
|
| 3 |
8358 |
Atomizer K 20 - 26mm |
260, 262 ,264, 266, 268 &
270 |
|
35 |
7346 |
Float pivot pin |
|
| 3 |
8566 |
Atomizer D 20 - 26mm |
260, 266 & 270 |
|
36 |
7451 |
Float bowl O ring |
|
| 3 |
7456 |
Atomizer M 27 - 30mm |
260, 262, 265 & 270 |
|
37 |
7335 |
Float bowl |
|
| 3 |
7755 |
Atomizer N 27 - 30mm |
260, 265 & 270 |
|
38 |
6266 |
Float bowl seal |
|
| 3 |
7790 |
Atomizer P 27 - 30mm |
260, 262, 265, 266, 268 &
270 |
|
39 |
6267 |
float bowl nut |
|
| 3 |
7972 |
Atomizer T 27 - 30mm |
260, 262, 264, 265, 266, 268
& 270 |
|
40 |
1481 |
Cable adjuster |
|
| 3 |
7878 |
Atomizer 29-30mm CS/CD |
265 & 270 |
|
41 |
1692 |
Adjuster locknut |
|
| 4 |
6413 |
Main Jet |
56 to 330, in steps of 1,2
& 3. Please ask. |
|
42 |
3698 |
90 Degree cable elbow |
|
| 5 |
1486 |
Idle jet (short) |
30 to 198, in steps of 1,2
& 3. Please ask |
|
42 |
3600 |
70 Degree cable elbow |
|
| 6 |
7746 |
Choke jet |
45,50,55,60,65,70,75,80,85
& 90 |
|
42 |
9330 |
40 Degree cable elbow |
|
| 7 |
7450 |
Float Assembly |
.1,
.2 & .3 |
|
42 |
10854 |
50 Degree cable elbow |
|
| 8 |
1476 |
Rubber cable cap |
|
|
43 |
8730 |
Pull-up choke assembly |
|
| 9 |
1104 |
Cable adjuster |
|
|
44 |
9328 |
Choke locking spring |
|
| 10 |
1691 |
Adjuster locknut |
|
|
45 |
8294 |
Lever
choke assembly 20 - 26mm |
| 11 |
3978 |
Top cover screw, Hex. Head |
|
|
45 |
8293 |
Lever
choke assembly 27 - 30mm |
| 11 |
3318 |
Top cover screw |
|
|
46 |
8260 |
Mixture screw washer |
|
| 12 |
5011 |
Spring washer |
|
|
47 |
8678 |
Mixture screw O ring |
|
| 13 |
7336 |
Top cover 20 - 26mm |
|
|
48 |
4650 |
Stop screw Washer |
|
| 13 |
7338 |
Top cover 27 - 30mm |
|
|
49 |
7540 |
Stop screw O ring |
|
| 14 |
8210 |
Top cover gasket 20 - 26mm |
|
|
50 |
5495 |
Circlip |
|
| 14 |
8208 |
Top cover gasket 27 - 30mm |
|
|
51 |
9327 |
Choke operating lever |
|
| 15 |
7745 |
Choke support screw |
|
|
52 |
6288 |
Needle valve seal, VHBZ/T |
|
| 16 |
8295 |
Choke support |
|
|
53 |
4224 |
Trumpet, 20mm |
|
| 17 |
8297 |
Choke support O ring |
|
|
54 |
1439 |
Trumpet, 30mm |
|
| 18 |
3133 |
Choke return spring |
|
|
55 |
3100 |
Trumpet |
|
| 19 |
3238 |
Choke piston |
|
|
56 |
7878 |
Atomizer, VHB CS/CD |
|
| 20 |
7449 |
Mixture screw |
|
|
57 |
4052 |
Banjo bolt seal |
|
| 21 |
7446 |
Mixture screw spring |
|
|
59 |
6517 |
Fuel banjo |
|
| 22 |
7673 |
Slide stop screw |
|
|
60 |
8752 |
Fuel banjo, 6mm |
|
| 23 |
4670 |
Slide stop spring |
|
|
61 |
4053 |
Banjo bolt |
|
| 24 |
7448 |
Slide spring |
2kg/35mm |
|
62 |
7890 |
Double fuel banjo |
|
| 24 |
7941 |
Slide spring |
1.1kg/35mm |
|
63 |
7879 |
Pump body |
|
| 24 |
8750 |
Slide spring |
0.8kg/35mm |
|
64 |
7831 |
Pump piston |
|
| 25 |
1407 |
Needle clip |
|
|
65 |
7185 |
Pump ball bearing |
|
| 26 |
8128 |
Clamp nut |
|
|
66 |
7832 |
Holder |
|
| 27 |
8131 |
Manifold clamp 20 - 26mm |
|
|
67 |
7882 |
Spring |
Pump assembly for CS/CD
|
| 27 |
8142 |
Manifold clamp 27 - 30mm |
|
|
68 |
7828 |
Main jet holder |
|
| 28 |
8127 |
Clamp bolt |
|
|
69 |
1486 |
Main
jet (See item 5 for sizes) |
| 29 |
6976 |
Manifold sleeve 20 - 26mm |
I/D 28.57 |
|
70 |
4057 |
Float bowl seal |
|
| 29 |
6977 |
Manifold sleeve 20 - 26mm |
I/D 28.57 (25 mm carb.) |
|
71 |
7880 |
Float bowl nut |
|
| 29 |
7569 |
Manifold sleeve 20 - 26mm |
I/D 25.4mm |
|
72 |
52510 |
Gasket set |
VHB/T 29-30 C |
| 29 |
8792 |
Manifold sleeve 20 - 26mm |
I/D 30mm |
|
72 |
52511 |
Gasket set |
VHB Linked |
| 29 |
7453 |
Manifold sleeve 27 - 30mm |
I/D 35mm |
|
72 |
52512 |
Gasket set |
VHB/Z 20 - 26mm |
| 29 |
8434 |
Manifold sleeve 27 - 30mm |
I/D 37mm |
|
72 |
52517 |
Gasket set |
VHB/T 27 - 30mm |
|
|
|
|
|
72 |
52517 |
Gasket set |
VHB/T 27 - 30mm |
|
