Dellorto Motorcycle Carburetor Parts Guide

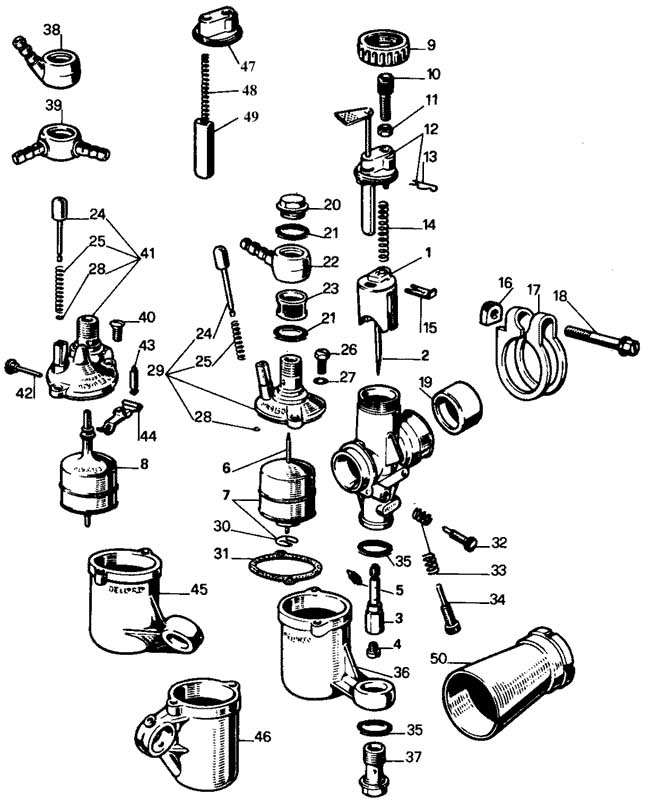

UB PARTS LIST & DIAGRAM Diag Part Diag Part No. No. Description Sizes/options available No. No. Description Sizes/options available 1 4884 Slide 40, 45, 55, 60,  65 & 75 26 1491 Float chamber screw 2 1425 Needle C1, 2, 7, 8 & 9 27 5010 Spring washer 3 1485 Atomizer 260 & 265 28 1493 Circlip 3 6799 Atomizer F 29 1584 Float chamber top 3 8318 Atomizer Z 30 1452 Float needle clip 4 1486 Main jet 30 to 198, in steps of 1,2 & 3. Please ask 31 1414 Float bowl gasket 5 1488 Idle jet 30 to 70, Please ask. 32 2115 Mixture screw 6 1607 Float needle 33 1411 Mixture/stop screw spring 7 1423 Float 7.5gr 34 1532 Slide stop screw 7 2390 Float 6.5gr 35 1382 Fibre seal 8 3076 Float 5gr 36 2200 Float bowl 9 1427 Top ring 37 2086 Float chamber bolt 10 1481 Cable adjuster 38 3072 Single banjo, 45 degree 11 1692 Adjuster locknut 39 3581 Double banjo 12 1642 Carb. Top 40 1580 Float chamber screw 13 3570 Choke spring clip 41 3670 Float chamber top 14 1409 Slide spring 42 2835 Float pivot pin 15 1407 Needle clip 43 2838 Needle valve 16 8128 Clamp nut 44 3073 Float arm 17 8129 Manifold clamp 45 4225 Float bowl, 20 degree 18 8127 Clamp bolt 45 4889 Float bowl, 34 degree 19 4477 Manifold sleeve I/D 23mm 45 2087 Float bowl, 50 degree 19 6039 Manifold sleeve I/D 20mm 46 2063 Float bowl, 90 degree 20 1494 Banjo bolt 47 2329 Carb. Top 21 1416 Banjo bolt seal 48 1093 Choke spring 22 2706 Fuel banjo 49 2325 Choke slide 23 1419 Fuel filter 50 2993 Trumpet 55mm 24 1492 Float tickler 50 3339 Trumpet 41mm 25 1410 Float tickler spring
