Dellorto Motorcycle Carburetor Parts Guide

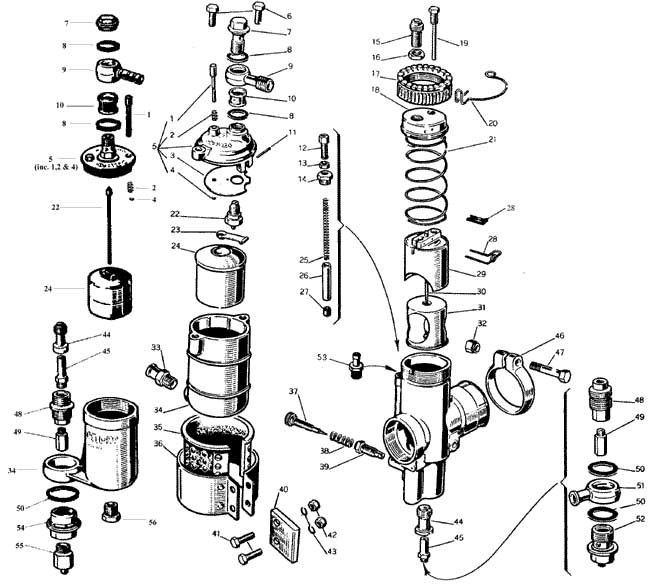

SS1 PARTS LIST & DIAGRAM

Diag Part Diag Part
No. No. Description Sizes available No. No. Description Sizes available
1 1857 Float tickler 32-35 28 1407 Needle clip 25-30
1 6534 Float tickler 25-30 29 3466 Slide 32-35
2 1288 Tickler spring 25-30 & 32-35 29 3686 Slide 32-35, Sizes 140,150,240 & 260
3 1902 Anti surge plate 32-35 29 2384 Slide 25-30
4 1493 Tickler circlip 25-30 & 32-35 30 1141 Needle, N 32-35, 1141.N1
5 2478 Chamber top assy 32-35 30 1900 Needle, P 32-35
5 2053 Chamber top assy 25-30 30 1824 Needle, M 25-30
6 1861 Bolt 32-35 31 5231 Diffuser 32-35
7 1955 Banjo bolt 32-35 31 5213 Diffuser 32-35
7 1494 Banjo bolt 25-30 31 2412 Diffuser 25-30
8 1416 Banjo seal 25-30 & 32-35 32 1751 Clamp nut 32-35
9 1991 Fuel banjo 32-35 33 1852 Fuel outlet 32-35
9 1564 Fuel banjo 25-30 34 1775 Float bowl 32-35
10 1419 Fuel filter 25-30 & 32-35 34 1737 Float bowl 25-30
11 1903 Pivot pin 32-35 35 1864 Float bowl support 32-35
12 1104 Cable adjuster 25-30 & 32-35 36 1872 Float bowl clamp 32-35
13 1691 Locknut 25-30 & 32-35 37 1753 Mixture screw 32.-35
14 1127 Choke support 25-30 & 32-35 37 1101 Mixture screw 25-30
15 1122 Cable adjuster 25-30 & 32-35 38 1116 Mixture screw spring 25-30 & 32-35
16 1123 Locknut 25-30 & 32-35 39 1752 mixture screw holder 32-35
17 3469 Top ring 32-35 40 1934 Support plate 32-35
17 3498 Top ring 32-35 41 1862 Clamp bolt 32-35
17 6784 Top ring 25-30 42 4698 Clamp nut 32-35
18 3468 Carb. Top 32-35 43 1948 Spring washer 32-35
18 3497 Carb. Top 32-35 44 1128 Atomizer holder 32-35
18 6783 Carb. Top 25-30 44 1795 Atomizer holder 25-35
19 3504 Slide stop screw 32-35 45 1121 Atomizer 32-35, Sizes 320 to 400, please ask
19 2388 Slide stop screw 25-30 46 1805 Atomizer 25-30, Sizes 260,268 & 272.
19a 1576 Locknut for 2388, Not shown 46 1748 Manifold clamp 32-35
20 3592 Locking clip 32-35 46 1749 Manifold clamp 32-35
20 1740 Locking clip 25-30 46 1796 Manifold clamp 25-30
21 3465 Slide spring 32-35 47 1750 Clamp bolt 32-35
21 3500 Slide spring 32-35 47 4269 clamp bolt 25-30
21 6785 Slide spring 25-30 48 1125 Main jet holder 32-35
22 1949 Needle valve 32-35, Size 400 48 2386 Main jet holder 25-30
22 1205 Needle valve 25-30 49 1126 main jet 25/35,Sizes 120 to 350, please ask
23 1901 Actuator arm 32-35 50 1972 Banjo seal 32-35
24 1893 Float 32-35 50 1161 Banjo seal 25-30
24 1156 Float 25-30 51 1853 Fuel banjo 32-35
25 1093 Choke spring 32-35 52 1953 Banjo bolt 32-35
25 1745 Choke spring 25-30 53 5654 Choke plug 32-35
26 1120 Choke piston 25-30 & 32-35 54 2387 Bottom nut 25-30
27 1747 Cable nipple 25-30 & 32-35 55 1801 Bottom nut 25-30
28 1742 Needle clip 32-35 56 1193 Nut 25-30
