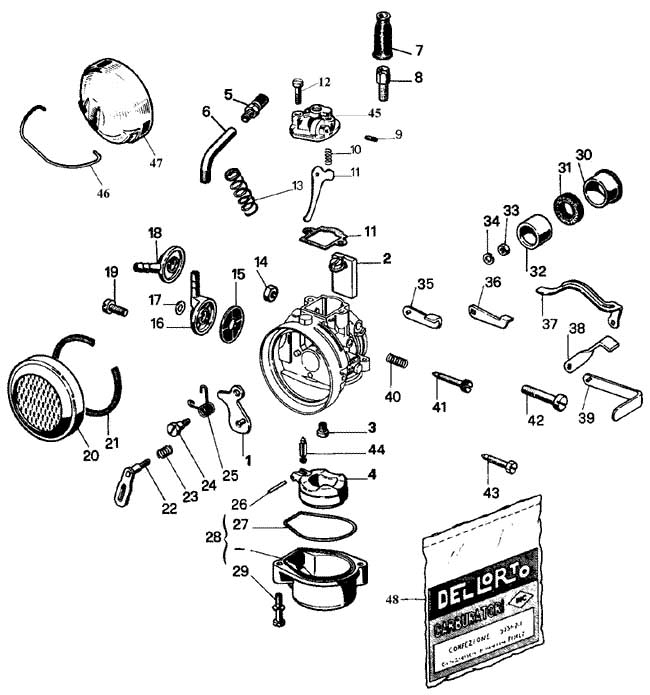

SHA PARTS LIST & DIAGRAM
|
|
| Diag |
Part |
|
|
|
Diag |
Part |
|
|
| No. |
No. |
Description |
Sizes/options
available |
|
No. |
No. |
Description |
Sizes/options
available |
| 1 |
9253 |
Choke flap |
|
|
24 |
5417 |
Shouldered screw |
|
| 2 |
6108 |
Slide |
|
|
25 |
7179 |
Choke spring |
|
| 3 |
1486 |
Main jet |
30 to 198, in steps of 1,2 & 3. Please
ask |
|
26 |
8773 |
Float pivot pin |
|
| 4 |
6122 |
Float |
|
|
27 |
6123 |
Float bowl O ring |
|
| 5 |
1481/1692 |
Cable adjuster/locknut |
|
|
28 |
15447 |
Float bowl |
|
| 6 |
3698 |
90 Degree cable elbow |
|
|
29 |
11837 |
Screw |
|
| 6 |
3600 |
70 Degree cable elbow |
|
|
30 |
11362 |
Manifold sleeve |
I/D 21mm - 18mm |
| 6 |
9330 |
40 Degree cable elbow |
|
|
31 |
* |
Seal |
Part of gasket set only |
| 6 |
10854 |
50 Degree cable elbow |
|
|
32 |
6448 |
Manifold sleeve |
I/D 20mm - 18mm |
| 7 |
1476 |
Rubber cable cap |
|
|
33 |
8000 |
Choke spindle nut |
|
| 8 |
1104 |
Cable adjuster |
|
|
34 |
1581 |
Spring washer |
|
| 9 |
6115 |
Top cover pin |
|
|
35 |
9257 |
Choke lever |
|
| 10 |
6259 |
Choke lever spring |
|
|
36 |
10162 |
Choke lever |
|
| 11 |
6112 |
Choke lever |
|
|
37 |
11119 |
Choke lever |
|
| 12 |
3318 |
Top cover screw |
|
|
38 |
12394 |
Choke lever |
|
| 13 |
3346 |
Slide return spring |
|
|
39 |
13004 |
Choke lever |
|
| 14 |
7427 |
Nut |
|
|
40 |
3606 |
Mixture screw spring |
|
| 15 |
6109 |
Fuel filter |
|
|
41 |
6140 |
Mixture screw |
|
| 16 |
6475 |
Fuel banjo |
Metal |
|
42 |
6305 |
Screw |
|
| 17 |
3385 |
Banjo bolt seal |
|
|
43 |
7578 |
Mixture screw |
|
| 18 |
9249 |
Fuel banjo |
Plastic |
|
44 |
2838 |
Needle valve |
|
| 19 |
4190 |
Banjo bolt |
|
|
44 |
11668 |
Needle valve |
Spring loaded tip |
| 20 |
6117 |
Air filter element |
|
|
45 |
6110 |
Carburetor top |
|
| 21 |
6159 |
Air filter seal |
|
|
46 |
6235 |
Cover clip |
|
| 22 |
9256 |
Choke spindle |
|
|
47 |
6183 |
Filter cover |
|
| 23 |
9259 |
Choke spindle spring |
|
|
48 |
52579 |
Gasket set |
|
|
