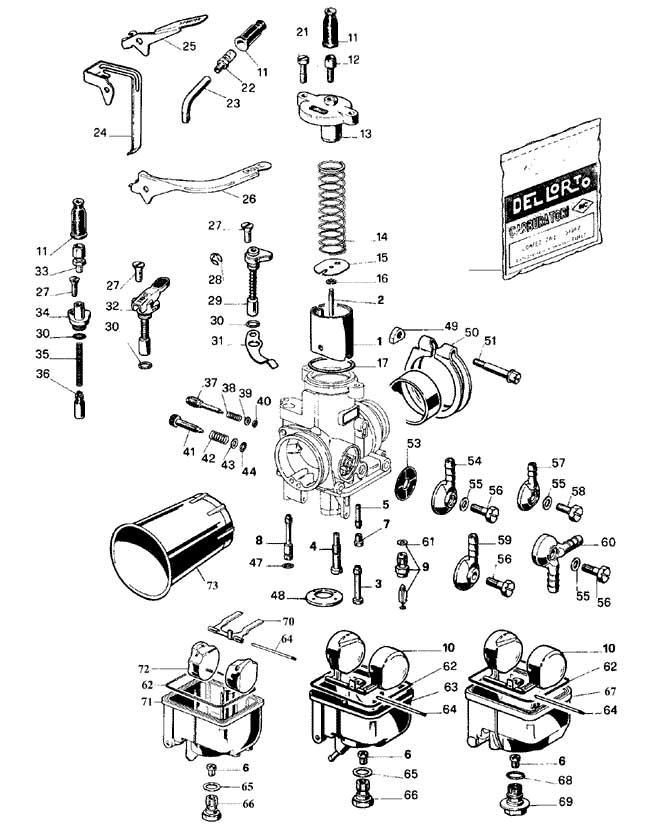

PHBH-L PARTS LIST & DIAGRAM
|
|
| Diag |
Part |
|
|
|
Diag |
Part |
|
|
| No. |
No. |
Description |
Sizes/options
available |
|
No. |
No. |
Description |
Sizes/options
available |
| 1 |
9645 |
PHBL Slide |
30,35,40,50,55 & 60 |
|
36 |
3238 |
Choke piston |
|
| 1 |
9374 |
PHBH Slide |
30,35,40,45,50,55,60 & 70 |
|
37 |
7449 |
Mixture screw |
|
| 2 |
2265 |
PHBL Needle |
D1, D17 to D44, Please ask |
|
38 |
7446 |
Mixture screw spring |
|
| 2 |
9477 |
PHBH Needle |
X1 to X84, Please ask |
|
39 |
8260 |
Mixture screw
washer |
|
| 3 |
8358 |
Atomizer K PHBL |
260, 262, 264, 266, 268 &
270 |
|
40 |
8678 |
Mixture screw O ring |
|
| 3 |
8566 |
Atomizer D PHBL |
260, 266 & 270 |
|
41 |
7673 |
Slide stop screw |
29.5mm Long |
| 3 |
7456 |
Atomizer M PHBH |
260, 262, 265 & 270 |
|
41 |
10257 |
Slide stop screw |
28.8mm Long |
| 3 |
7790 |
Atomizer P PHBH |
260, 262, 265, 266, 268 &
270 |
|
42 |
4670 |
Stop screw spring |
Use with 7973 |
| 3 |
7972 |
Atomizer T PHBH |
260,
262, 264, 265, 266, 268 & 270 |
|
42 |
2638 |
Stop screw spring |
Use with 10257 |
| 3 |
10575 |
Atomizer CE PHBH |
262 & 264 |
|
43 |
4650 |
Stop screw washer |
|
| 4 |
9423 |
Atomizer AS PHBH |
260,262,264,266,268,270,272
& 274 |
|
44 |
7540 |
Stop screw O ring |
|
| 4 |
9695 |
Atomizer AV PHBH |
260,262,264,265,
266,268,270,272,280,290,300 |
|
46 |
10001 |
Short trumpet PHBH |
|
| 4 |
10174 |
Atomizer BN PHBH |
260,62,64,66,68,
270,272,274,276,278,280,290 |
|
47 |
6173 |
Starter jet O ring |
|
| 4 |
10654 |
Atomizer CF PHBH |
264,66,68,70,72,74,76,78, 80
& 290 |
|
48 |
9996 |
Anti-surge washer |
|
| 5 |
10532 |
Idle Emulsion tube PHBL |
CD1 |
|
49 |
8128 |
Clamp nut |
|
| 5 |
9980 |
Idle Emulsion tube PHBH |
Size |
|
50 |
8142 |
Manifold clamp PHBH |
|
| 6 |
6413 |
Main Jet |
56 to 330, in steps of 1,2
& 3. Please ask. |
|
50 |
8131 |
Manifold clamp PHBL |
|
| 7 |
1486 |
Idle jet |
30 to 198, in steps of 1,2
& 3. Please ask |
|
51 |
8127 |
Clamp bolt |
|
| 8 |
7747 |
Starter jet PHBL |
Size |
|
52 |
7453 |
Manifold sleeve PHBH |
35mm I/D |
| 8 |
7746 |
Starter jet PHBH |
45,50,55,60,65,70,75,80,85
& 90 |
|
52 |
6976 |
Manifold sleeve PHBL |
28.57mm I/D |
| 9 |
9436 |
Needle valve |
200,225 |
|
52 |
6977 |
Manifold sleeve PHBL |
|
| 9 |
8649 |
Needle valve PHBH |
250, 270, 300, 350, 400 |
|
52 |
7569 |
Manifold sleeve PHBL |
25.4mm I/D |
| 10 |
9010 |
Float Assembly |
.1, .2, .3 |
|
52 |
8792 |
Manifold sleeve PHBL |
30mm I/D |
| 11 |
1476 |
Rubber cable cap |
|
|
53 |
6109 |
Fuel filter |
|
| 12 |
1104 |
Cable adjuster |
|
|
54 |
6273 |
Fuel banjo (metal) |
|
| 13 |
9561 |
Carb. Top PHBL |
|
|
55 |
4052 |
Banjo bolt seal |
|
| 13 |
9372 |
Carb. Top PHBH |
|
|
56 |
4568 |
Banjo bolt |
|
| 14 |
9644 |
Slide spring PHBL |
|
|
57 |
8752 |
Fuel banjo |
6mm pipe fitting |
| 14 |
8550 |
Slide Spring PHBH |
1.15kg/35mm |
|
58 |
4053 |
Banjo bolt |
|
| 15 |
9563 |
Needle plate PHBL |
|
|
59 |
9250 |
Fuel banjo (plastic) |
|
| 15 |
9375 |
Needle plate PHBH |
|
|
60 |
7890 |
Double fuel banjo |
|
| 16 |
9596 |
Needle circlip |
|
|
61 |
6288 |
Needle valve seal |
|
| 17 |
6013 |
Carb top O ring PHBL |
|
|
62 |
9424 |
Float bowl O ring |
|
| 17 |
9476 |
Carb. Top O ring PHBH |
|
|
63 |
12143 |
Float bowl
+ breather |
|
| 21 |
8542 |
Top cover screw |
|
|
64 |
7346 |
Float pivot pin |
|
| 22 |
1482/1692 |
Adjuster + locknut |
|
|
65 |
6266 |
Float bowl seal |
|
| 23 |
3698 |
90 Degree cable elbow |
|
|
66 |
6267 |
Float bowl nut |
|
| 23 |
3600 |
70 Degree cable elbow |
|
|
67 |
11770 |
Float bowl |
|
| 23 |
9330 |
40 Degree cable elbow |
|
|
68 |
* |
Seal for 11771 |
Part of gasket set only |
| 23 |
10854 |
50 Degree cable elbow |
|
|
69 |
11771 |
Float bowl nut |
|
| 24 |
9896 |
Choke lever |
|
|
70 |
13154 |
Float arm |
|
| 25 |
9327 |
Choke lever |
|
|
71 |
13590 |
Float bowl |
Individual floats |
| 26 |
11985 |
Choke lever |
|
|
72 |
9794 |
Single float |
.1, .3, .4 & .5 |
| 27 |
7745 |
Choke support screw |
|
|
73 |
9543 |
55mm trumpet PHBH |
|
| 28 |
5495 |
Choke circlip |
|
|
73 |
9560 |
50mm trumpet PHBL |
PHBL |
| 29 |
8730 |
Pull-up choke assembly |
|
|
74 |
52524 |
Gasket set PHBL |
|
| 30 |
8297 |
Choke support O ring |
|
|
74 |
52552 |
Gasket set PHBL C |
|
| 31 |
9704 |
Choke locking spring |
|
|
74 |
52599 |
Gasket set PHBL D, S |
|
| 32 |
8294 |
Lever choke assembly |
|
|
74 |
52523 |
Gasket set PHBH |
|
| 33 |
1104/1691 |
Cable adjuster/locknut |
|
|
74 |
52581 |
Gasket set PHBH F |
|
| 34 |
8295 |
Choke support |
|
|
74 |
52598 |
Gasket set PHBH Q |
|
| 35 |
3133 |
Choke return spring |
|
|
|
|
|
|
|
