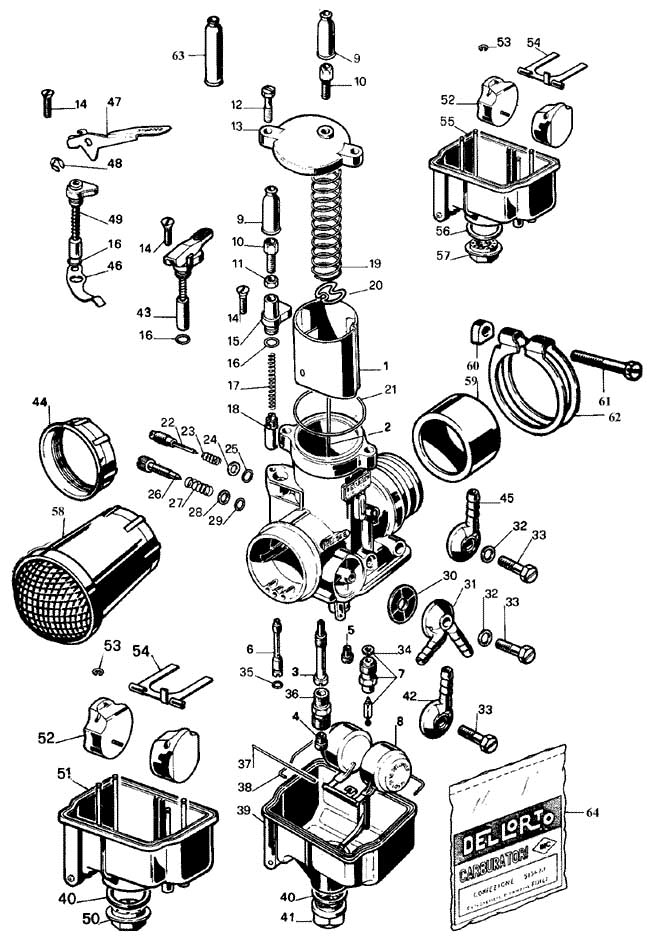

PHBE PARTS LIST & DIAGRAM
|
|
| Diag |
Part |
|
|
|
Diag |
Part |
|
|
| No. |
No. |
Description |
Sizes/options available |
|
No. |
No. |
Description |
Sizes/options available |
| 1 |
9309 |
Slide |
20 to 80, steps of 10 |
|
29 |
7540 |
Stop screw O ring |
|
| 2 |
8530 |
Needle |
K1 to K95 |
|
30 |
6109 |
Fuel filter |
|
| 2 |
8978 |
Needle |
Z1 (Methanol) |
|
31 |
7890 |
Double banjo |
|
| 2 |
9713 |
Needle |
U1 to U25 |
|
32 |
4052 |
Fibre seal |
|
| 3 |
8540 |
Atomizer AB |
258 to 300, Please ask |
|
33 |
4568 |
Banjo bolt |
|
| 3 |
9593 |
Atomizer AR |
255 to 290, Please ask |
|
34 |
6288 |
Fibre seal |
|
| 3 |
9695 |
Atomizer AV |
260 to 300, Please ask |
|
35 |
6173 |
O ring |
|
| 3 |
10174 |
Atomizer BN |
260 to 290, Please ask |
|
36 |
8885 |
Main
Jet holder |
} Please specify carb details |
| 3 |
10654 |
Atomizer CF |
264 to 290, Please ask |
|
36 |
8886 |
Main Jet holder |
|
| 3 |
8979 |
Atomizer AF |
340, 350 & 360 (Methanol) |
|
37 |
7346 |
Float pin |
|
| 3 |
9423 |
Atomizer AS |
260 to 274, Please ask |
|
38 |
7451 |
Float bowl O ring |
|
| 4 |
6413 |
Main Jet |
56
to 330, in steps of 1,2 & 3. Please ask. |
39 |
7881 |
Float bowl |
|
| 5 |
1486 |
Idle jet (short) |
30
to 198, in steps of 1,2 & 3. Please ask |
40 |
4057 |
Float bowl nut seal |
|
| 6 |
7746 |
Choke jet |
45,50,55,60,65,70,75,80,85
& 90 |
|
41 |
8886 |
Float bowl nut |
|
| 7 |
10375 |
Float needle valve |
150, 170, 200, 225 |
|
42 |
9250 |
Single banjo, plastic |
|
| 7 |
8649 |
Float needle valve |
250, 270, 300, 350, 400 |
|
43 |
8293 |
Manual choke assy |
Please check length, 2 types
available |
| 7 |
8982 |
Float needle valve |
420 Metal methanol needle
valve |
|
44 |
8680 |
Short trumpet |
|
| 8 |
7450 |
Float |
.1,
.2 & .3 |
|
45 |
6273 |
Single banjo, metal |
|
| 9 |
1476 |
Rubber cable cap |
|
|
46 |
9704 |
Choke locking spring |
|
| 10 |
1104 |
Cable adjuster |
|
|
47 |
9327 |
Choke lever |
|
| 11 |
1691 |
Adjuster locknut |
|
|
48 |
5495 |
Circlip |
|
| 12 |
8542 |
Screw |
|
|
49 |
8730 |
Lift up choke assy. |
|
| 13 |
11045 |
Carb. Top (Plastic) |
|
|
50 |
9676 |
Float bowl nut |
|
| 14 |
7745 |
Choke support screw |
|
|
51 |
9791 |
Float bowl |
|
| 15 |
8295 |
Choke support |
|
|
52 |
9794 |
single float |
.1, .3, .4 & .5 |
| 16 |
8297 |
choke support O ring |
|
|
53 |
3704 |
Circlip |
|
| 17 |
3133 |
Choke return spring |
|
|
54 |
9796 |
Float arm |
|
| 18 |
3238 |
Choke piston |
|
|
55 |
10237 |
Float bowl |
|
| 19 |
8550 |
Slide spring 0.7kg/70mm |
29.5mm |
|
56 |
2778 |
Float bowl seal |
|
| 19 |
8532 |
Slide spring 1.1kg/70mm |
|
|
57 |
10238 |
Float bowl nut |
|
| 19 |
9389 |
Slide spring 1.4kg/70mm |
|
|
58 |
8670 |
60mm Trumpet with gauze |
|
| 20 |
8525 |
Needle circlip |
|
|
59 |
8595 |
Manifold sleeve |
I/Dia 42 mm |
| 21 |
8533 |
Top O ring |
|
|
59 |
9432 |
Manifold sleeve |
I/Dia 39 mm |
| 22 |
7449 |
Mixture screw |
|
|
60 |
8128 |
Clamp nut |
|
| 23 |
7446 |
Mixture screw spring |
|
|
61 |
8127 |
Clamp bolt |
|
| 24 |
8260 |
Washer |
|
|
62 |
8527 |
Manifold clamp |
|
| 25 |
8678 |
Mixture screw O ring |
|
|
63 |
8222 |
Rubber cable cap, long |
|
| 26 |
7673 |
Thottle stop screw |
29.5mm Long |
|
64 |
52519 |
Gasket set |
|
| 26 |
4670 |
Thottle stop screw |
28.5mm Long |
|
64 |
52546 |
Gasket set C H L R P T U |
|
| 27 |
4670 |
Stop screw spring |
|
|
|
Manual |
DellortoTuning
manual |
|
| 28 |
4650 |
Stop screw washer |
|
|
|
|
|
|
|
